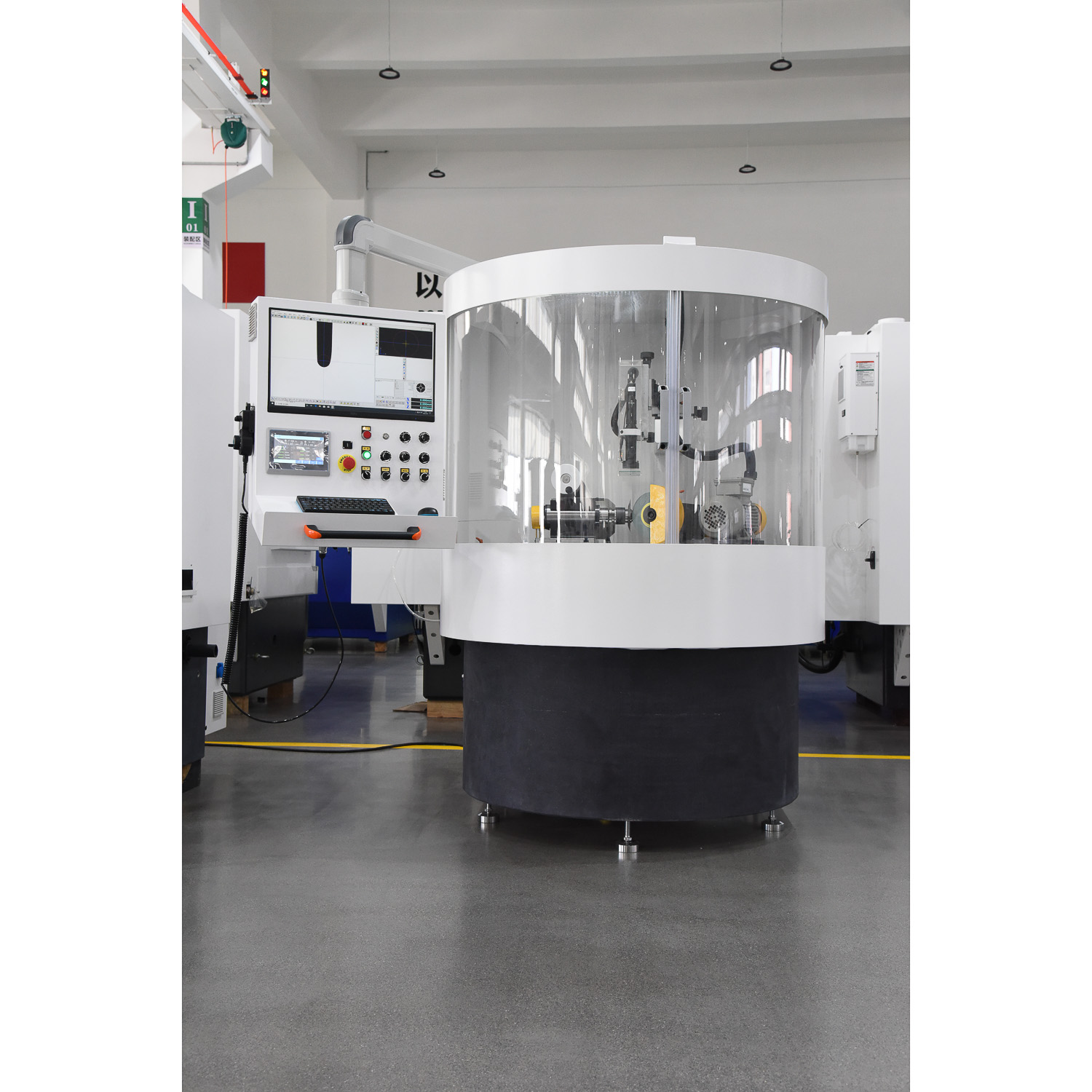

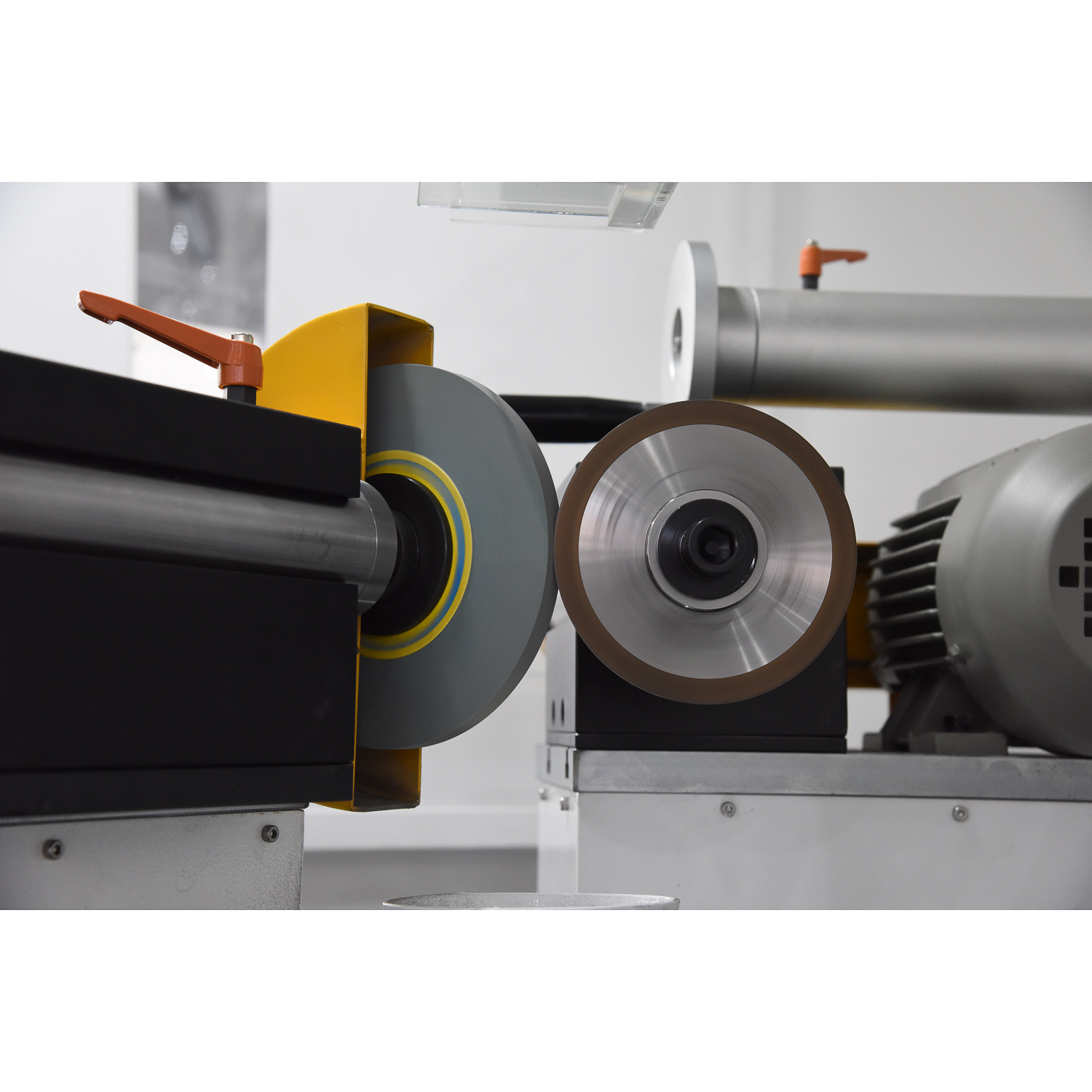

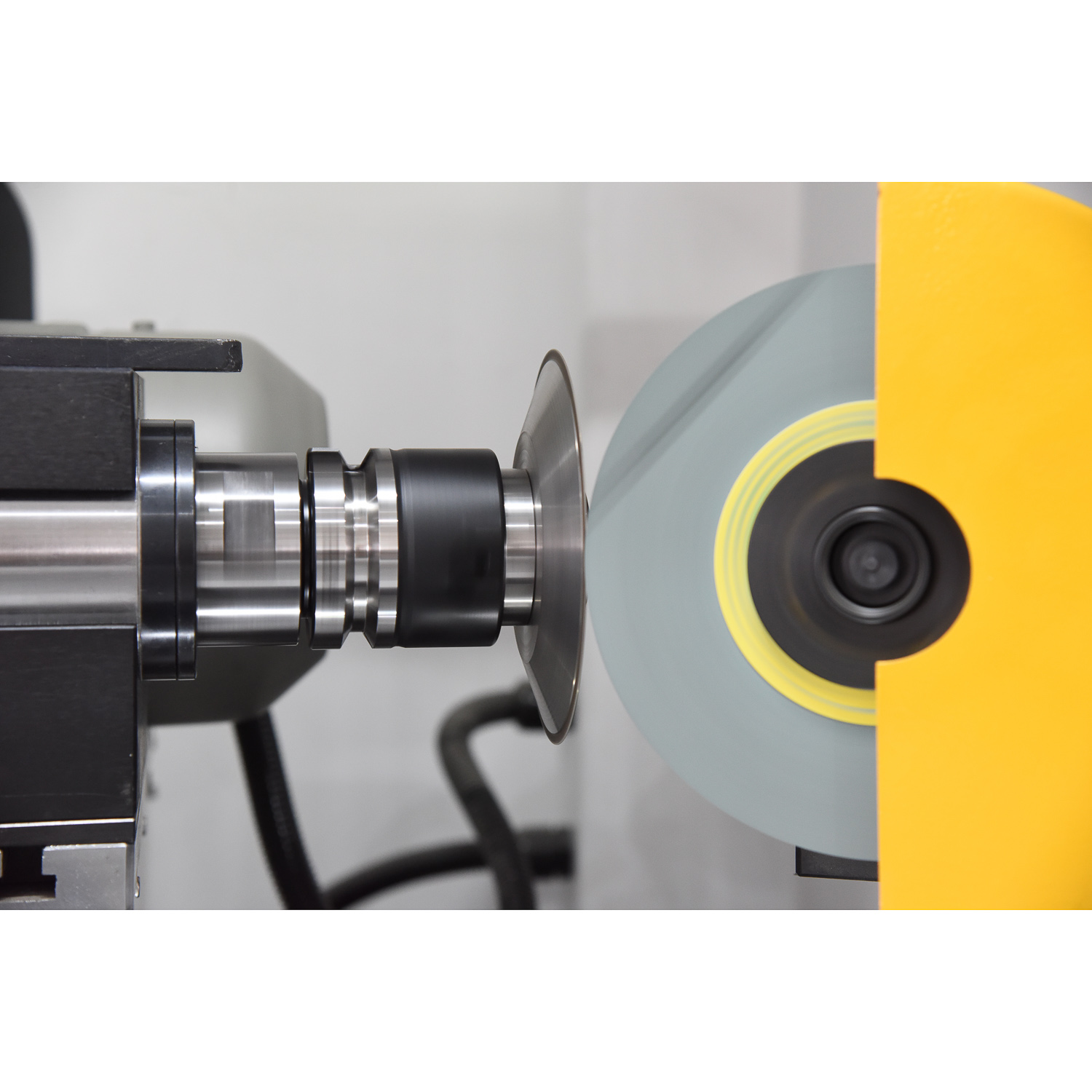

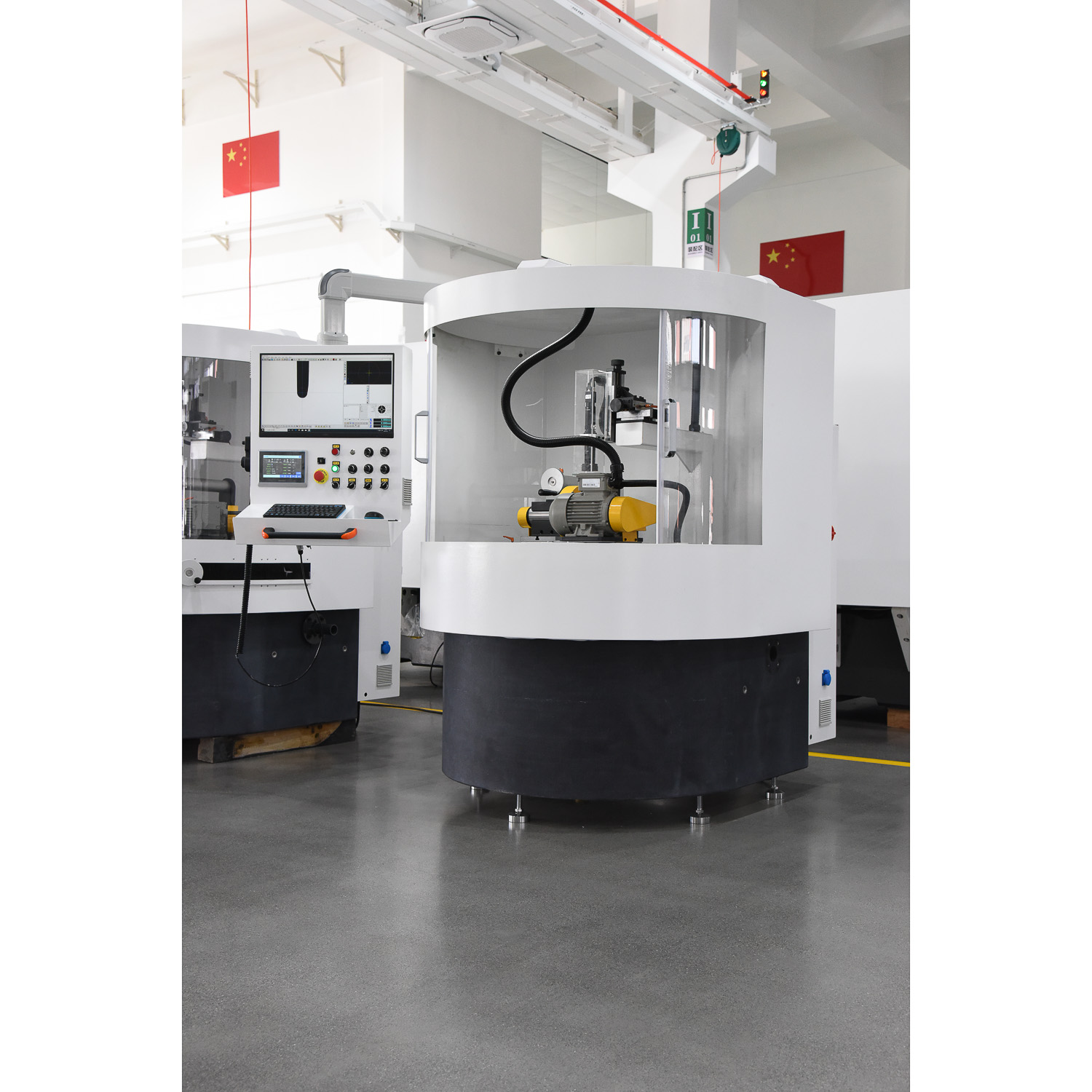

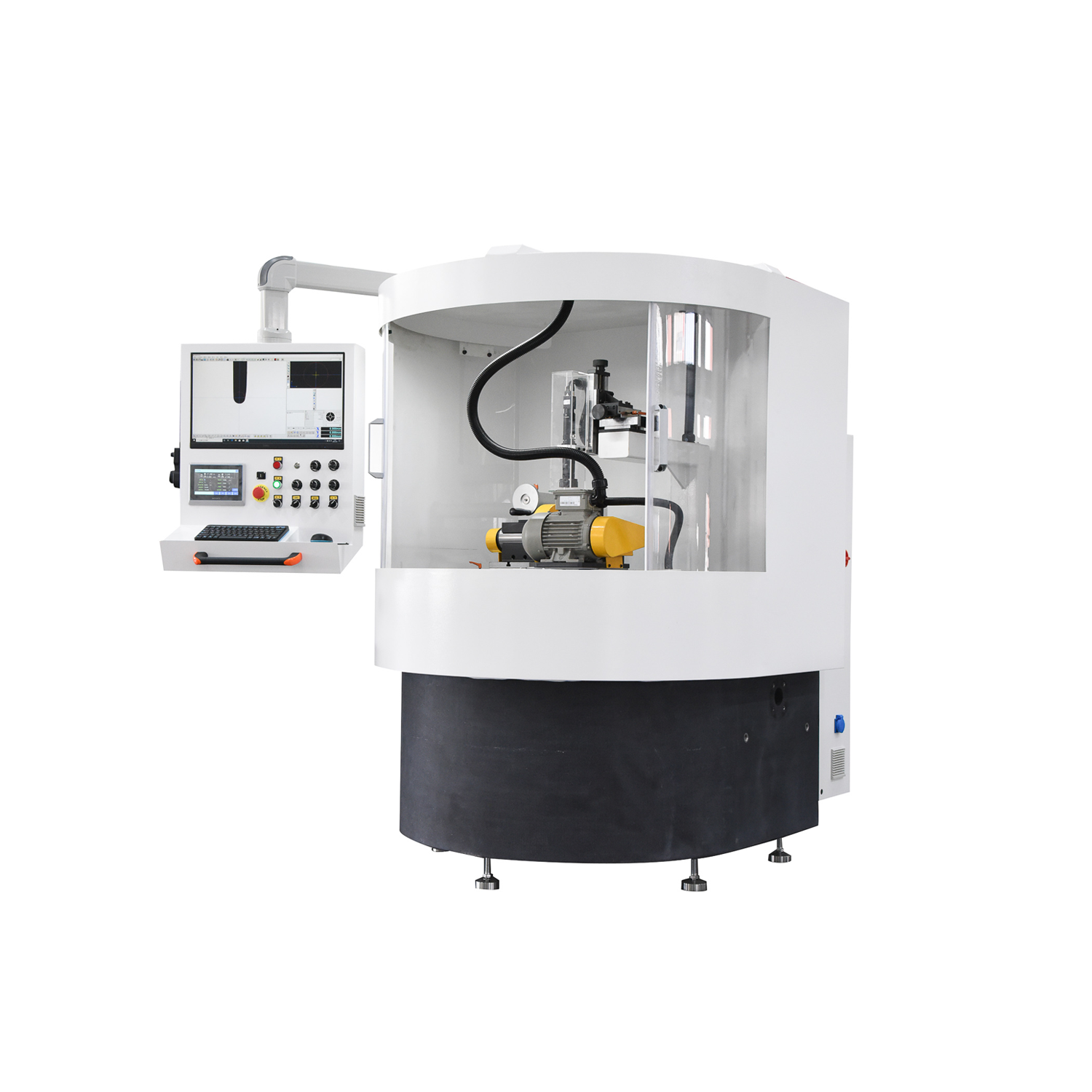

Naseiko NZ-01E Automatic Grinding Wheel Trimming Machine
The automatic rotating part uses a reducer and servo motor structure, which can input the angles of the left and right sides. The rotating table will automatically rotate, and at the same time, the dressing grinding wheel will feed once on each side. The distance of the feed and the speed of the left and right rotation can be input.
2. Automatic feed procurement servo motor+ball screw+synchronous pulley structure design. After aligning the starting position of the grinding wheel, you can input the amount of feed each time. After the number of feed
times, the system will automatically feed.
It could not only trim diamond and CBN grinding wheel, but also the flat and side surface, angles, outer arcs and formed
grinding wheel, as well as single and multiple grinding wheels.
▶ Ideal for grinding diamond and CBN grinding wheel, as well as other types of grinding wheels with convient and efficient effect.
▶ Easy to operate with high accuracy grinding wheel. The principle is the speed difference between the repaired and dressing
▶ The repaired wheel is for diamond and CBN grinding wheel, while the grinding wheel is green silicon carbide grinding wheel.
▶ The repaired grinding wheel could be adjusted in X-axis and Y-axis.
▶ The dressing wheel could be adjusted in rotating A-axis, X1-axis and Y-axis directions with variable speed frequency
reciprocating oscillation. The X1-axis and Y1-axis could be rotated and positioned for achieving 180 °
rotation of the whole grinding wheel.
▶ Equipped with a CCD optical measurement system, grating ruler digital display measurement system, 10 Up to 100x magnification system and LCD display
| PROJECT | UNIT | NZ-01E |
| Diamond grinding wheel spindle | - | BT40 / HSK50 /（or customized） |
| Maximum diameter of diamond grinding wheel | mm | Φ350 |
| Minimum diameter of diamond grinding wheel | mm | Φ50 |
| Maximum width of diamond grinding wheel | mm | 40 |
| Diamond grinding wheel speed | rpm | 0-1500（continuously variable speed） |
| Diamond grinding wheel motor | kw | 0.75 |
| Left and right movement distance of diamond grinding wheel | mm | 135 |
| Forward and backward movement distance of diamond grinding wheel | mm | 135 |
| Diamond arc size | mm | Φ0.05-40 |
| Dressing wheel (silicon carbide) diameter | mm | Φ180 / 10 / ψ32 |
| Dressing wheel speed | rpm | 0-2800 |
| Motor Power of dressing grinding wheel | kw | 0.75 |
| Number of swinging times of dressing grinding wheel | rpm/min | 0-50（continuously variable speed） |
| Length of swinging of dressing grinding wheel | mm | 0-50(adjustable） |
| Swing motor power of dressing grinding wheel | kw | 0.025 |
| X-axis and Y-axis optical ruler device | mm | 0.001 |
| CCD and high-definition lens | piece | 1 |
| Data acquisition card | set | 1 |
| Lens holder | set | 1 |
| Lens cross workbench | set | 1 |
| LED bottom light | piece | 1 |
| LED upper light | piece | 1 |
| Computer host | piece | 1 |
| LCD display screen | inch | 19 |
| Loading the EDIS measurement system | set | 1 |
| Power supply voltage | - | 380V,50HZ |
| Total power | kw | 1.5kw |
| Machine size (length × wide × High) | mm | 1600 / 1200 / 1800 |
| Total weight of the machine | kg | About 1500 |
