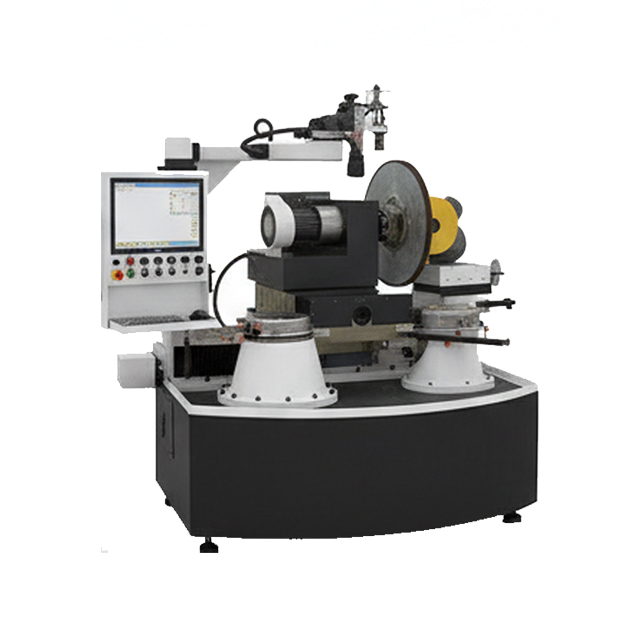

Naseiko NZ-01F Big Size Heavy Type Grinding Wheel Dressing Machine

Standard configuration

Product specifications and standard attachments:

1, Diamond grinding wheel spindle BT50

2, The maximum diameter of the diamond grinding wheel is 700mm

3, The minimum diameter of diamond grinding wheel is 400mm

4, The maximum width of the diamond grinding wheel is 50mm

5, Diamond grinding wheel speed: 0-1440rpm (continuously variable speed)

6, Diamond grinding wheel motor............................................... 3.0kw

7, Diamond grinding wheel moves left and right a distance of 200mm

8, The forward and backward movement distance of the diamond grinding wheel is 180mm Diamond Arc Size

9, Trimming the diameter of the grinding wheel (silicon carbide) with a diameter of Ø 250 x 12 x ψ 31.75mm

10, Repair the grinding wheel speed from 0-2840rpm

211, Dressing grinding wheel motor power: 1.5kw

12, Adjust the number of times the grinding wheel swings between 0-50rpm/min (infinitely variable speed)

13, Adjust the swing length of the grinding wheel to 0-90mm (adjustable)

14, Dressing grinding wheel swing motor power:  0.09kw

15,  X. Y-axis optical ruler device (0.001mm feed unit)

16,  CCD and high-definition lens: 1 unit

17,  1 set of data acquisition card

18,  1 set of lens mount

19,  Lens Cross Workbench 1 set

20,  1 LED light

21,  1 LED downlight

22,  1 computer host

23,  LCD display screen 19 inches

24,  Install 1 set of EDIS measurement system

25, Power supply voltage: 380V, 50HZ

26, Total power: 5.0kw

27, Machine dimensions: 1850mm x 1650mm x 1850mm (height)

28, The total weight of the machine is approximately 3000KG

List of  Configuration for Dressing machine NZ-01F
