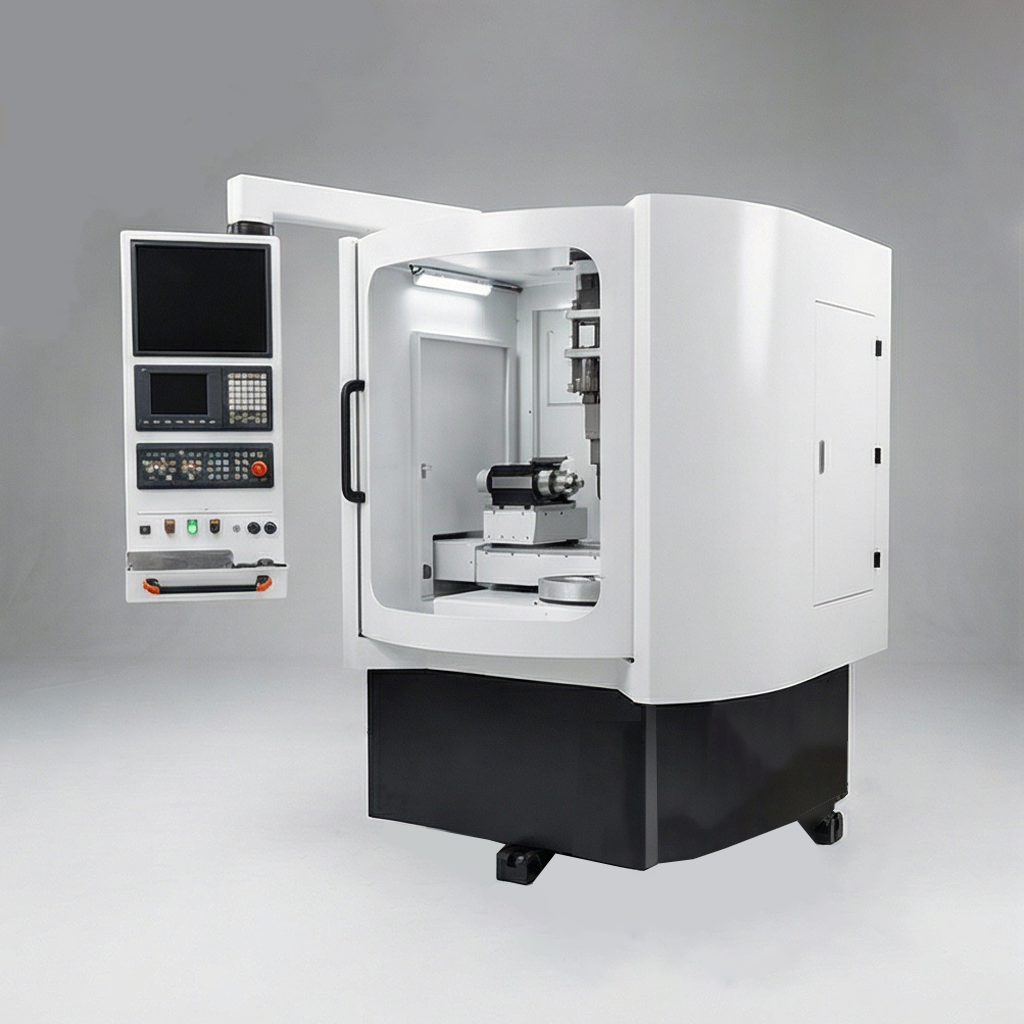

Naseiko NZ-01S CNC Grinding Wheel Trimming Machine

Serial Number project Technical parameters and specifications

1 Specification for the connection of the repaired grinding wheel spindle HSK50

2 Repaired grinding wheel spindle power ≥0.75kw

3 The spindle speed of the repaired grinding wheel is the lowest 100rpm

4 The spindle speed of the repaired grinding wheel is the highest ≥ 1000rpm (infinitely adjustable speed)

5 The diameter range of the repaired grinding wheel Minimum: ≥ 50mm in diameter; Maximum: ≥ 250mm

3.2 Basic requirements for machine tools

3.2.1. This machine tool can be used for trimming the outer diameter, end face, outer diameter cone surface, and outer diameter R surface of CBN grinding wheels and diamond grinding wheels;

3.2.2. The machine tool adjusts and controls two cross slide tables through five linear axes, and achieves the trimming action in a fully automatic manner through the horizontal movement and swinging motion between the CNC trimming axes;

3.2.3. The machine tool adopts a window display interface, with a human-machine dialogue for programming operation. The operation interface can display the projection image of the measurement system

3.2.4. The machine tool has a grinding wheel detection function, including measurement software and optical lenses. It can achieve visual alignment of the tool through the screen by comparing the preset contour line with the projected contour of the dressing grinding wheel;

3.2.5. The machine tool should be equipped with necessary adjustment and operation tools;

3.3.1. The machine tool bed adopts a high-quality and high-precision metal casting or artificial marble casting integrated structure, which has sufficient rigidity. When repairing, the bed should have good vibration absorption and thermal stability;

3.3.2. The machine tool cabin adopts a fully enclosed structure, and the movable door adopts a push-pull type, which is flexible in movement. The movable door and the front shell of the operating area adopt a transparent acrylic cover plate full window structure. Protective door with interlocking device, achieving self-locking in automatic grinding cycle; The interlocking device should be equipped with a key for machine tool adjustment;

3.3.3. The machine tool should have 2 grinding head spindles; Five linear motion work axes are used to control the horizontal feed axis, transverse feed axis, and horizontal swing of the dressing wheel spindle between the dressing table and the workpiece being dressed. The machine tool is controlled by CNC and achieves a linked dressing action according to program settings;
